Iconic S200 BT Scanner

Wireless Bluetooth scanner for freedom and flexibility

Iconic S200 BT Scanner

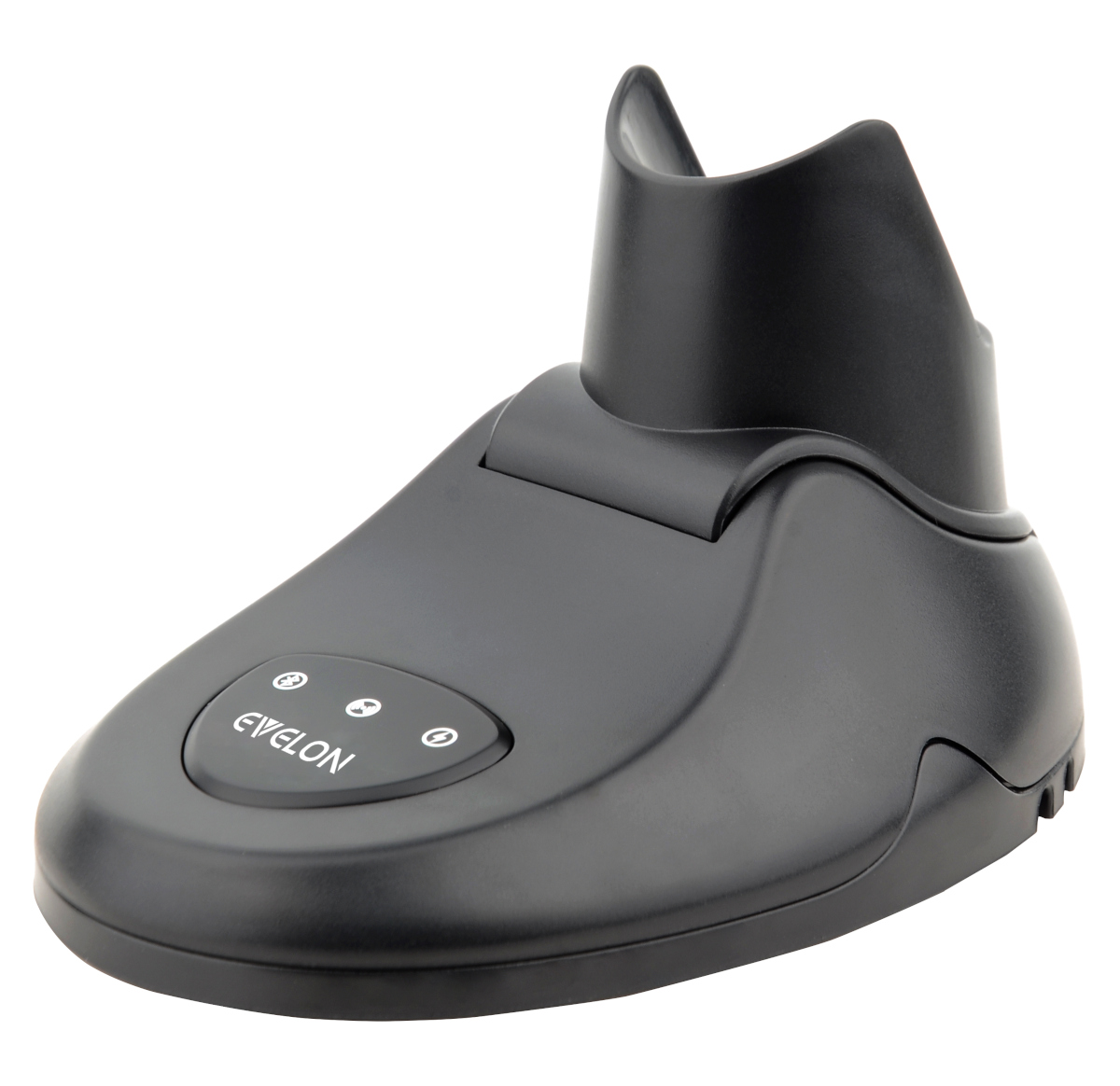

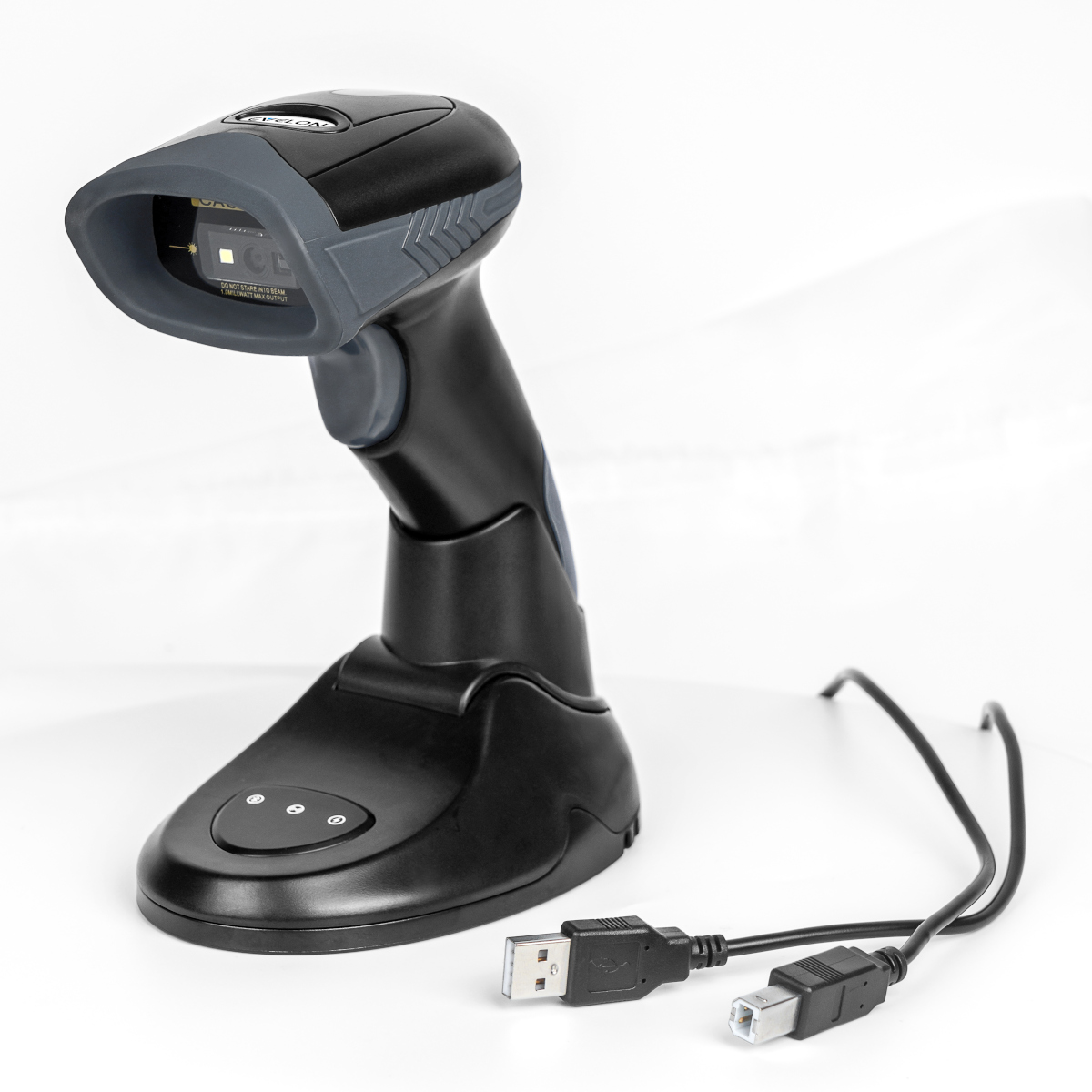

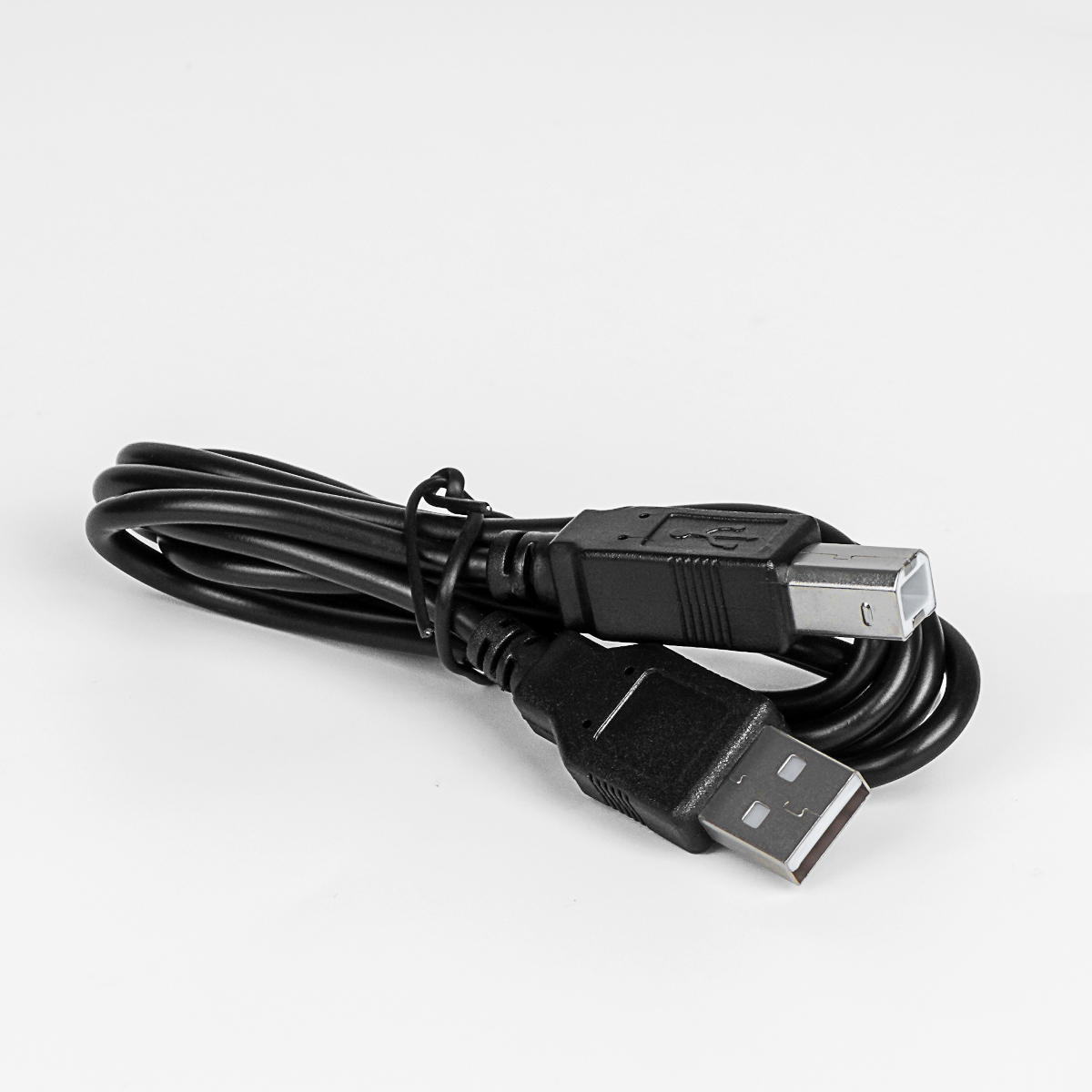

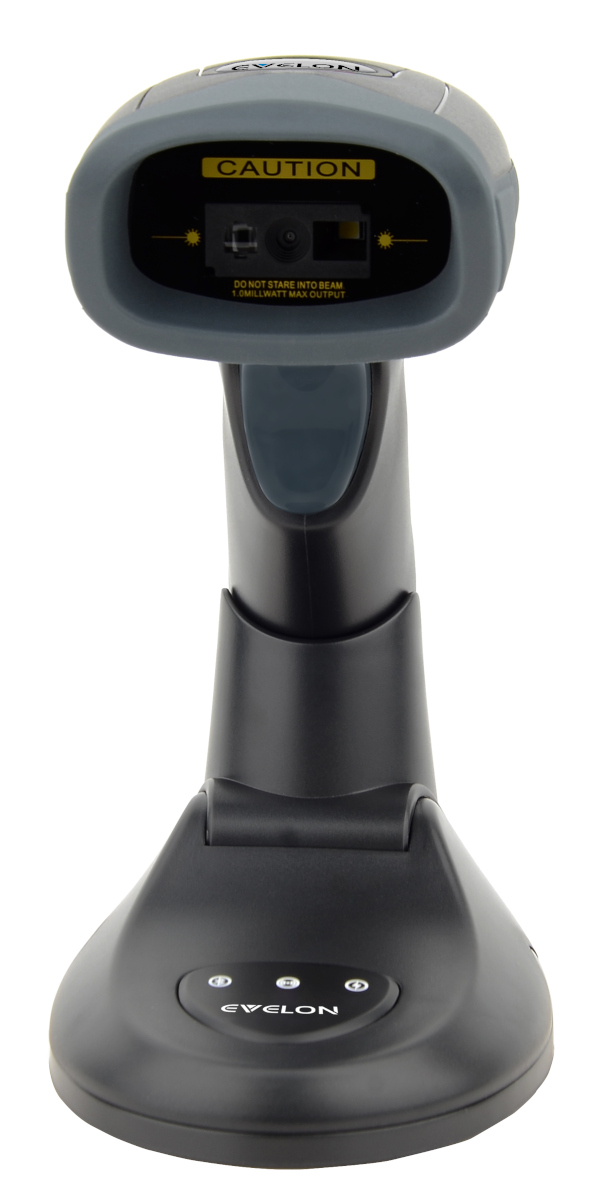

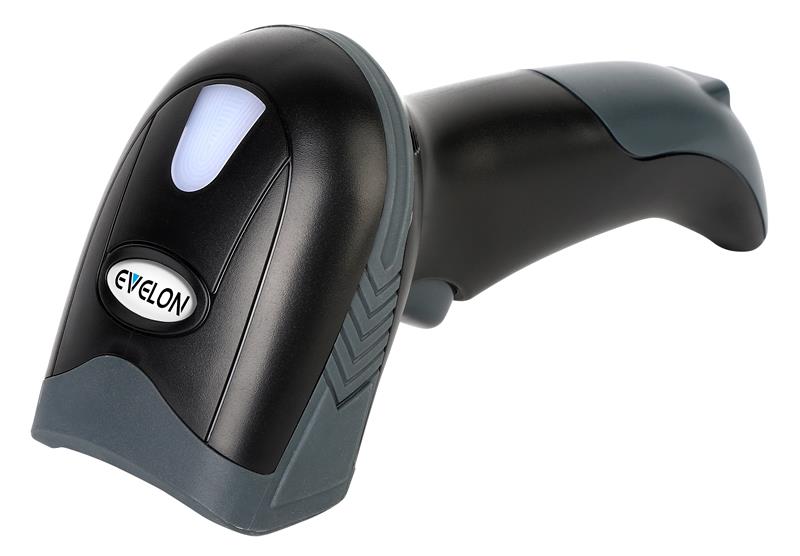

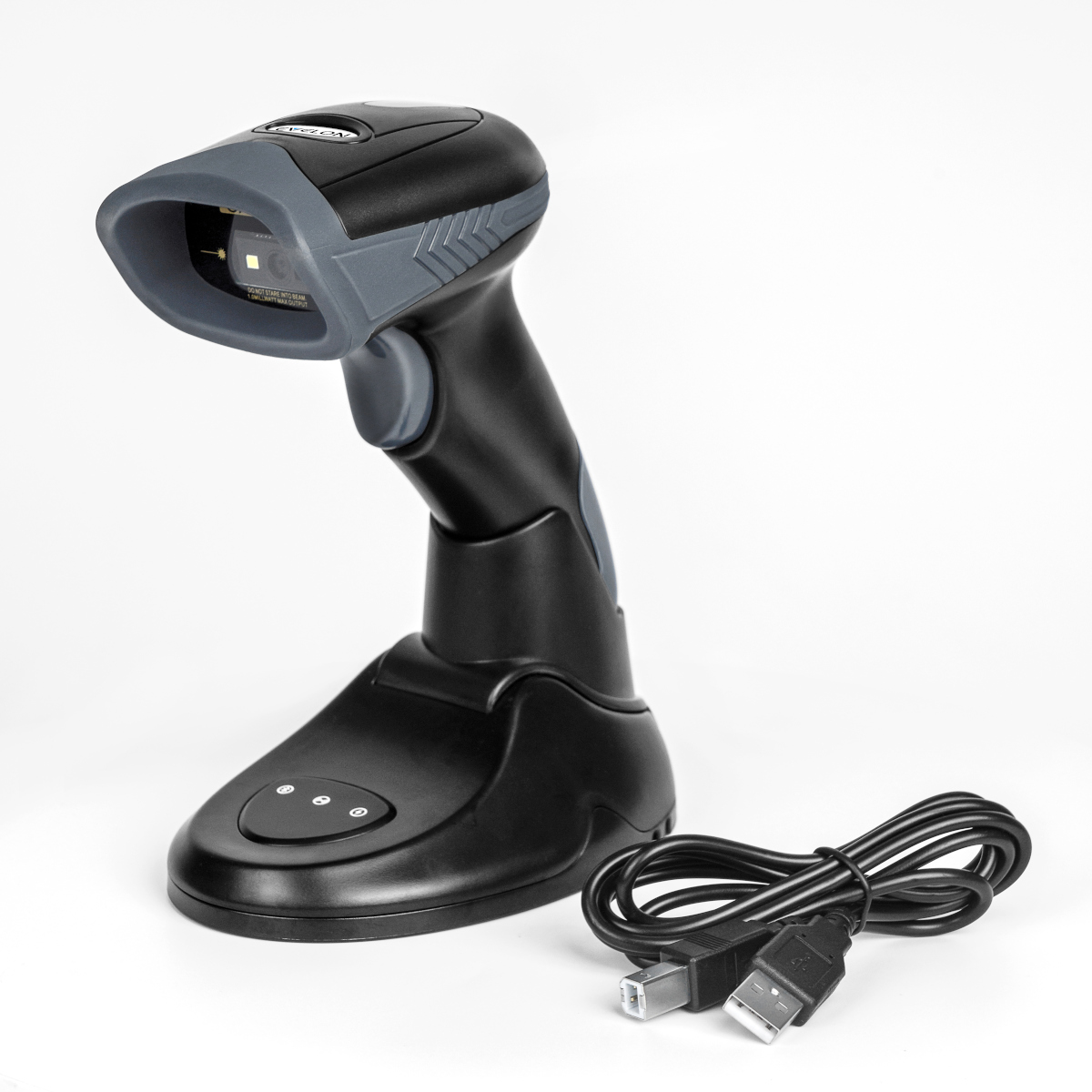

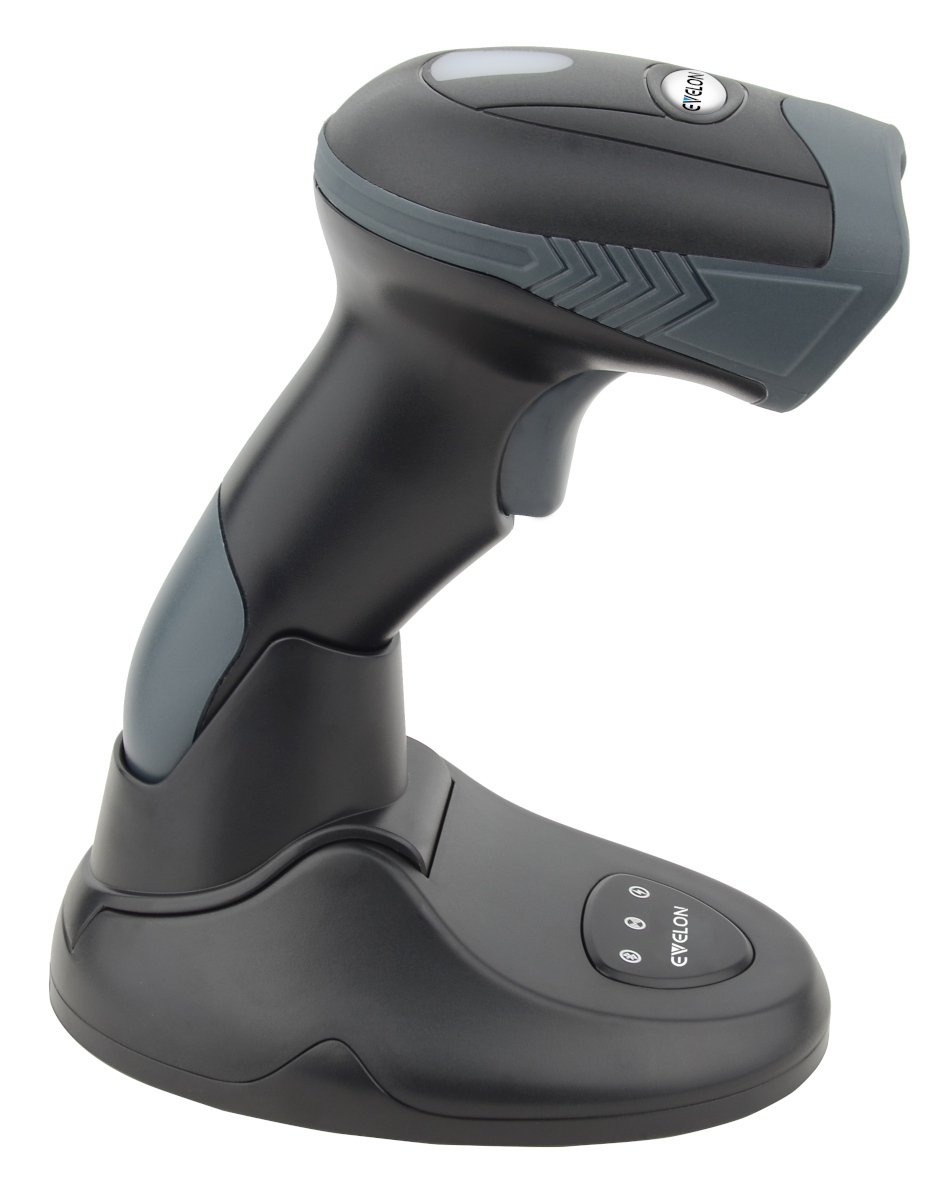

Iconic S200 BT View 1 Iconic S200 BT View 2 Iconic S200 BT View 3 Iconic S200 BT View 4 Iconic S200 BT View 5 Iconic S200 BT View 7 Iconic S200 BT View 8 Iconic S200 BT View 9

Specifications

Scan Type
CMOS Image
Resolution
640x480
Precision
≥5mil
Contrast
≥10%
Scan Angle
Yaw 55°, Pitch 55°, Rotation 30°
Depth of Field
35–280 mm
Interfaces
USB-HID, USB-COM
Communication
2.4G dedicated receiver, Bluetooth BLE 4.0
Scan Modes
Manual, Continuous, Automatic
Transmission Distance
30–50M
Battery
1400mAh Li-ion
Battery Life
6h (working), 3.5h (charging)
Charging
Type-C USB
Standby Current
0mA
Storage Capacity
512,000 characters
Operating Temp.
-20 to 60°C
Storage Temp.
-40 to 70°C
Humidity
5%–95%
Shock Resistance
3 m drop
Dimensions
86.6×85×169 mm
Weight
245.8g
Cable Length
0.8M

Key Features

  • Supports direct pairing with mobile/tablet/laptop via Bluetooth
  • Wireless transmission range: 30–50 meters
  • Offline and inventory storage modes (512,000 characters)
  • Touch charging base
  • Supports Chinese 2D codes

Bluetooth Setup Instructions

  1. Power on the scanner by pressing and holding the power button
  2. Press and hold the Bluetooth pairing button for 3 seconds
  3. The scanner will enter pairing mode (LED will flash blue)
  4. On your device, enable Bluetooth and search for new devices
  5. Select "Iconic S200 BT" from the available devices list
  6. Wait for successful pairing confirmation
  7. Open your application and test scanning functionality
  8. Configure scan settings if needed through the companion app

Applications

Mobile POS

Perfect for mobile point-of-sale systems with wireless freedom and flexibility.

Warehouse Management

Streamline warehouse operations with wireless scanning capability and extended range.

Event Management

Ticket scanning and attendee management at events with portable wireless operation.

Field Service

Asset tracking and service management in field operations with mobile connectivity.
