Iconic S200 Scanner

Versatile wired barcode scanner for various applications

Iconic S200 Scanner

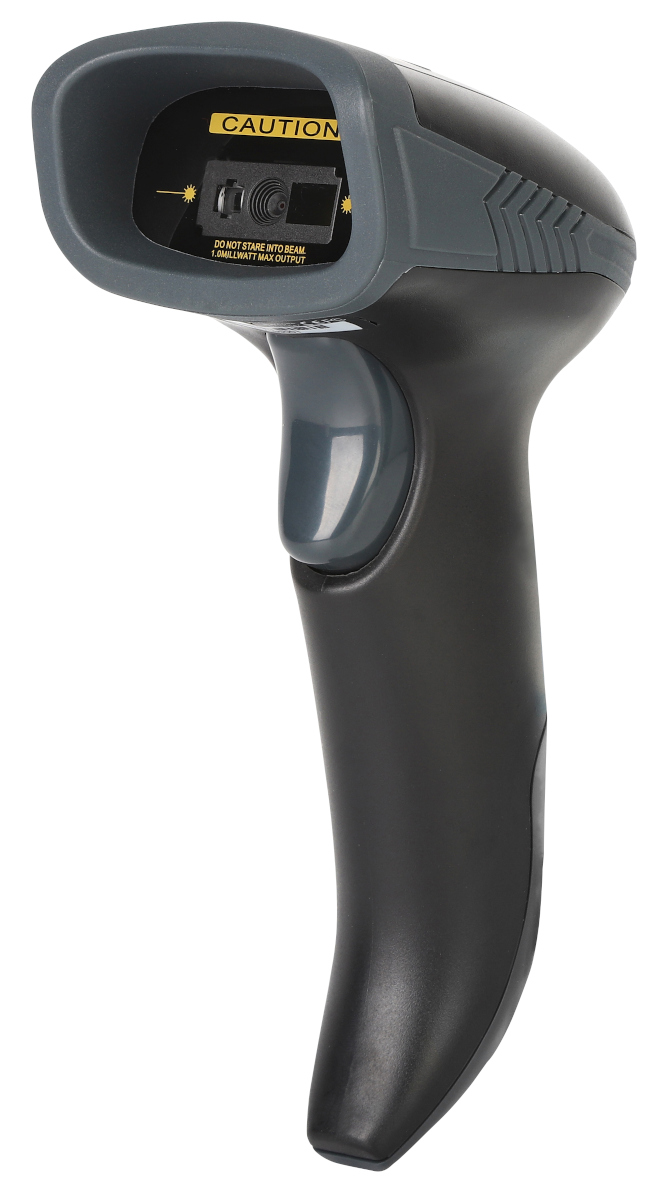

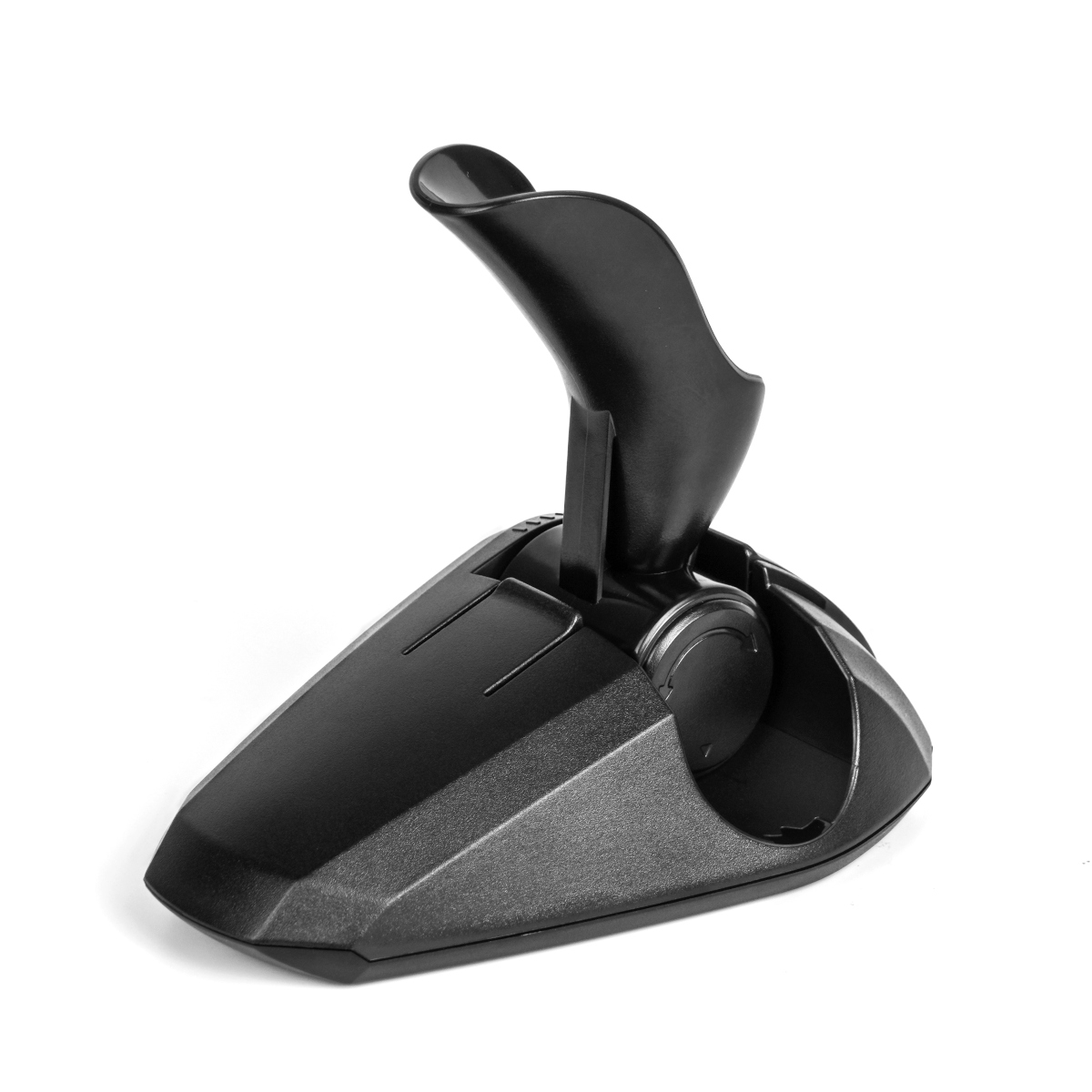

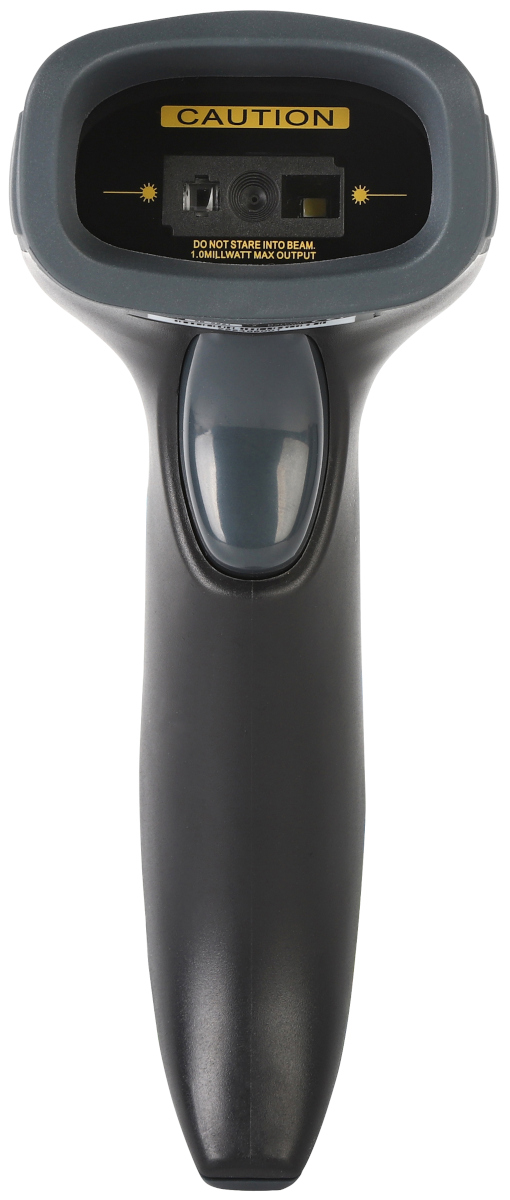

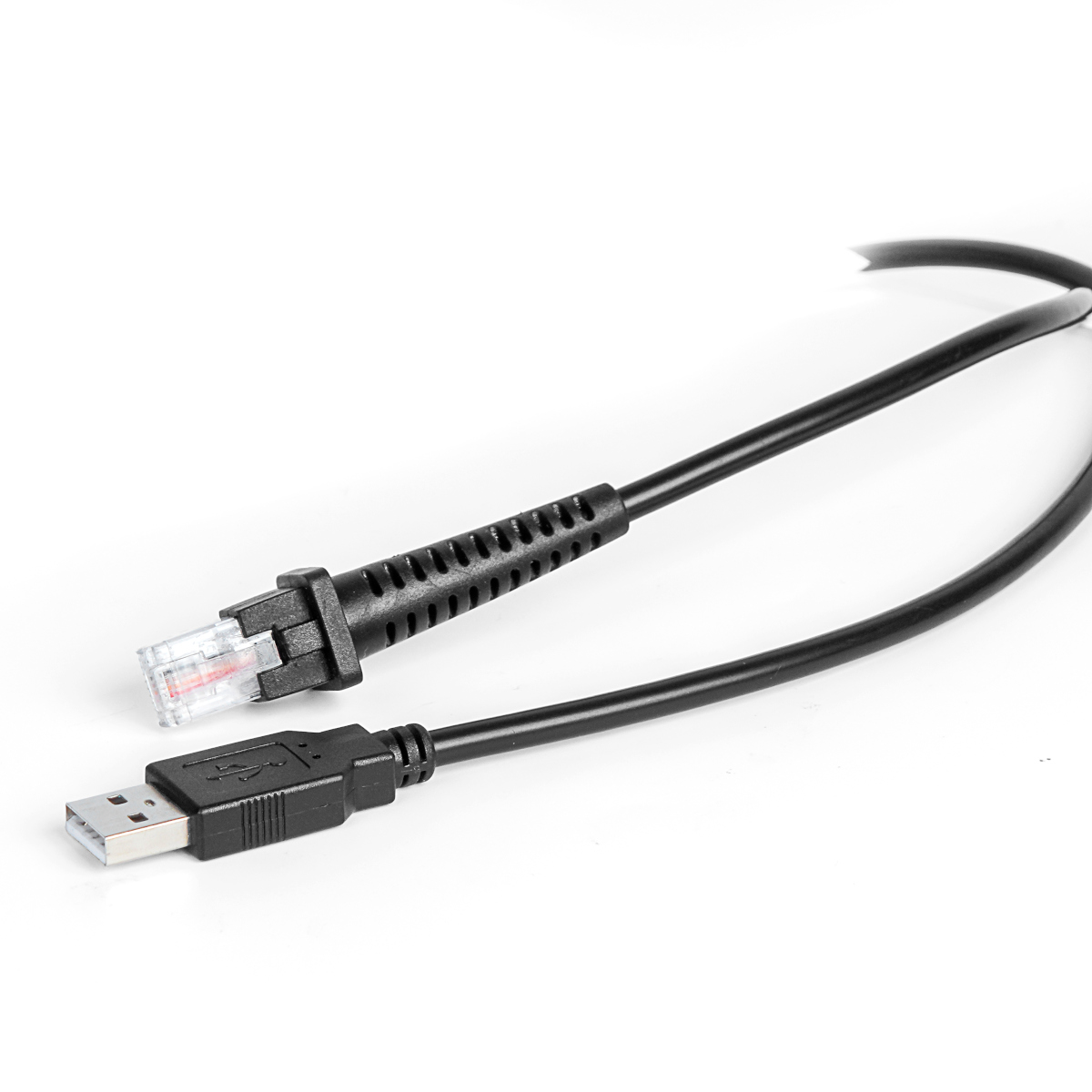

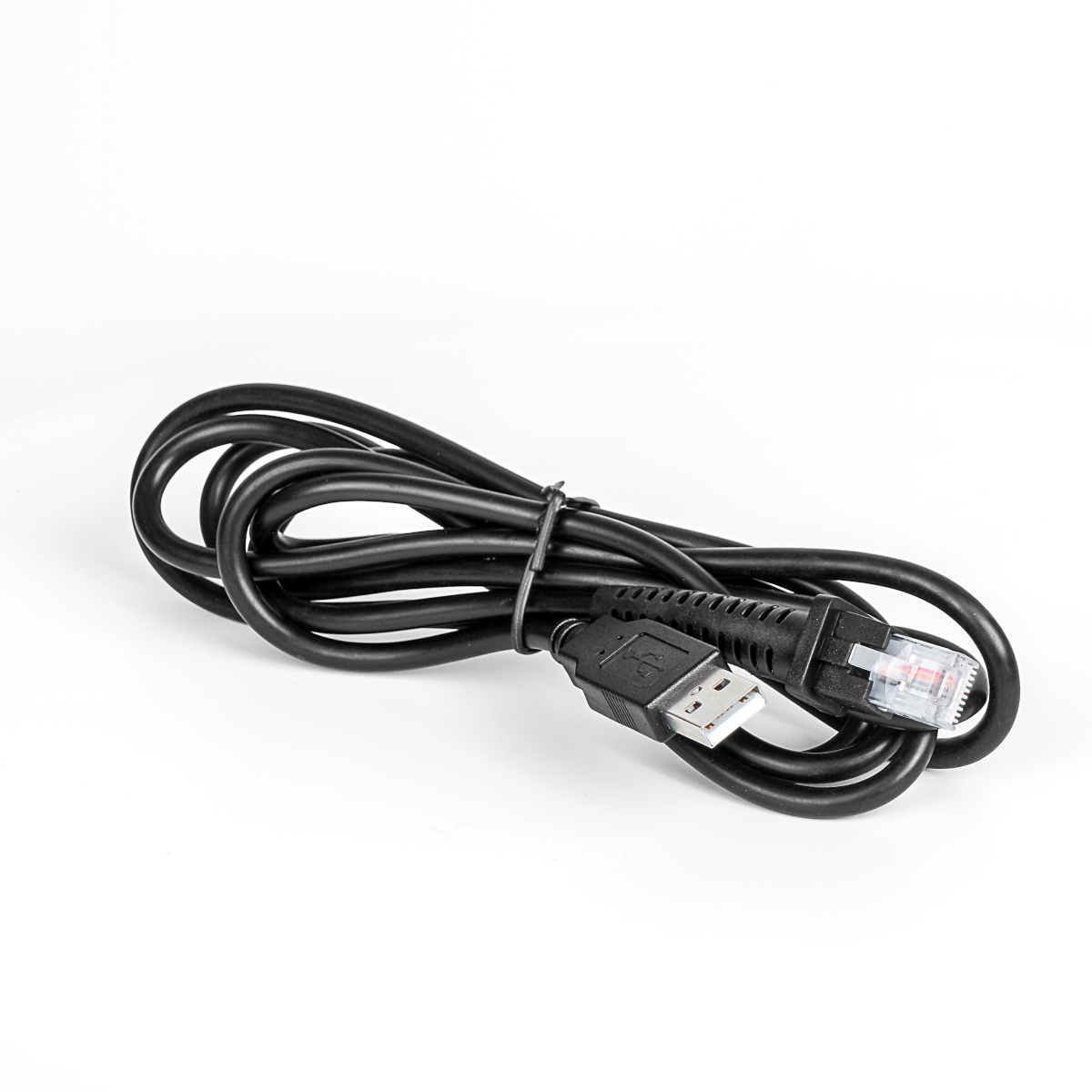

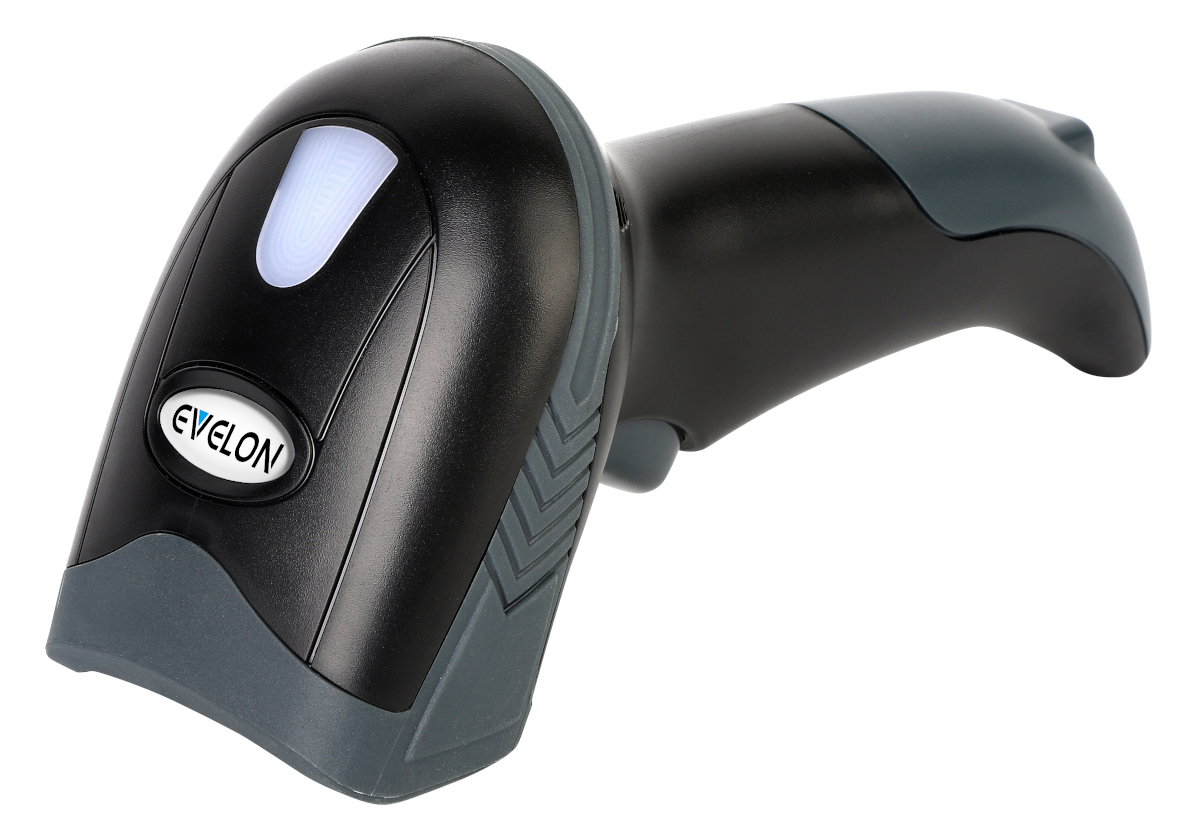

Iconic S200 View 1 Iconic S200 View 2 Iconic S200 View 3 Iconic S200 View 4 Iconic S200 View 5 Iconic S200 View 6 Iconic S200 View 7

Specifications

Scan Type
CMOS Image
Resolution
640x480
Precision
≥5mil
Scan Angle
Yaw 55°, Pitch 55°, Rotation 360°
Depth of Field
35–280 mm (EAN13, 13mil, 90% PCS)
Light Sources
617nm LED aimer, white LED
Scan Modes
Manual, Continuous, Automatic Scintillation
Error Rate
<1/5 million
Contrast
≥10%
Interfaces
USB-HID, USB-COM, RS232
1D Codes
Code 128, EAN, UPC, Code 39, Code 93, MSI
2D Codes
QR Code, Micro QR, Data Matrix, PDF417, Hanxin, Dotcode
Operating Temp.
-20 to 50°C
Storage Temp.
-40 to 70°C
Humidity
5%–95%
Shock Resistance
1.5 m drop
Dimensions
69×79.7×155 mm
Weight
116g
Cable Length
1.8M
Power
DC5V±5%, ≥135mA

Key Features

  • Plug and play with fast setup
  • Supports WeChat, Alipay, Alipay invoicing
  • Durable wiring
  • New decoding chip for 1D/2D barcodes

Setup Instructions

  1. Connect the scanner to your device using the USB cable
  2. Power on your computer or POS system
  3. The scanner will be automatically detected as HID device
  4. No additional drivers required for most systems
  5. Open your application (text editor, POS software, etc.)
  6. Point the scanner at a barcode and press the trigger
  7. Barcode data will be entered as keyboard input

Applications

Retail POS

Perfect for basic point-of-sale systems with reliable 1D barcode scanning.

Inventory Tracking

Efficient stock management and inventory control for small to medium businesses.

Library Systems

Book checkout and inventory management in libraries and educational institutions.

Document Management

Track documents and files with barcode labels for organized record keeping.
